6.2. Device Configuration

6.2. Device Configuration#

Clicking the Settings button opens the configuration interface, where the user can adjust operating parameters or upgrade the device firmware.

../../_images/app-6.png

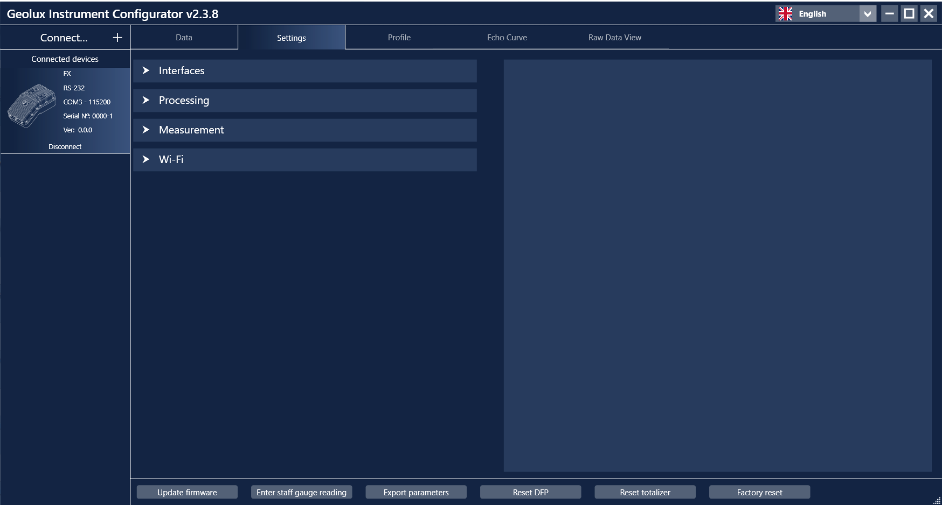

Settings page for FX200 flow meter.#

Settings are organized into three groups: Interfaces, Processing, Measurements, LiDAR and Wi-Fi. Selecting a group displays all associated settings.

When a setting is selected or modified, a detailed description is displayed on the right side of the window. Detailed descriptions of all parameters are also given in 4. Flow Meter Settings. After changing a parameter, a Set button appears next to the modified field. Clicking Set confirms and saves the new value to the device.

../../_images/app-7.png

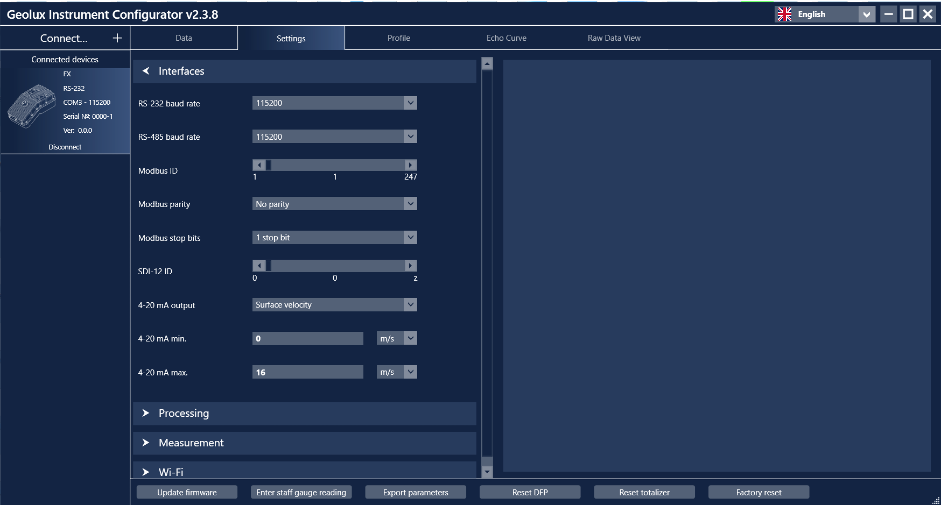

Interface settings.#

../../_images/app-8.png

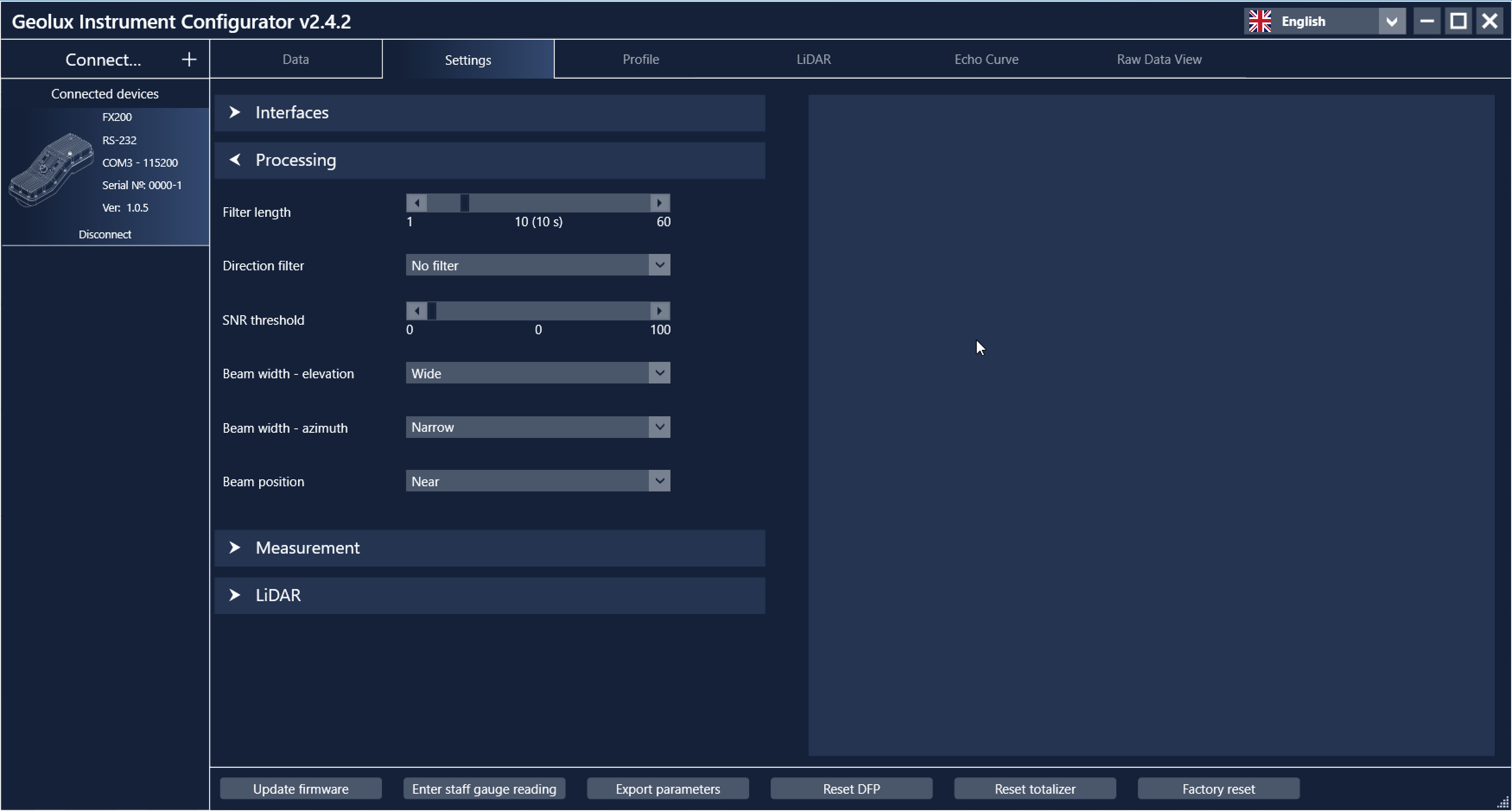

Data processing settings.#

../../_images/app-9.png

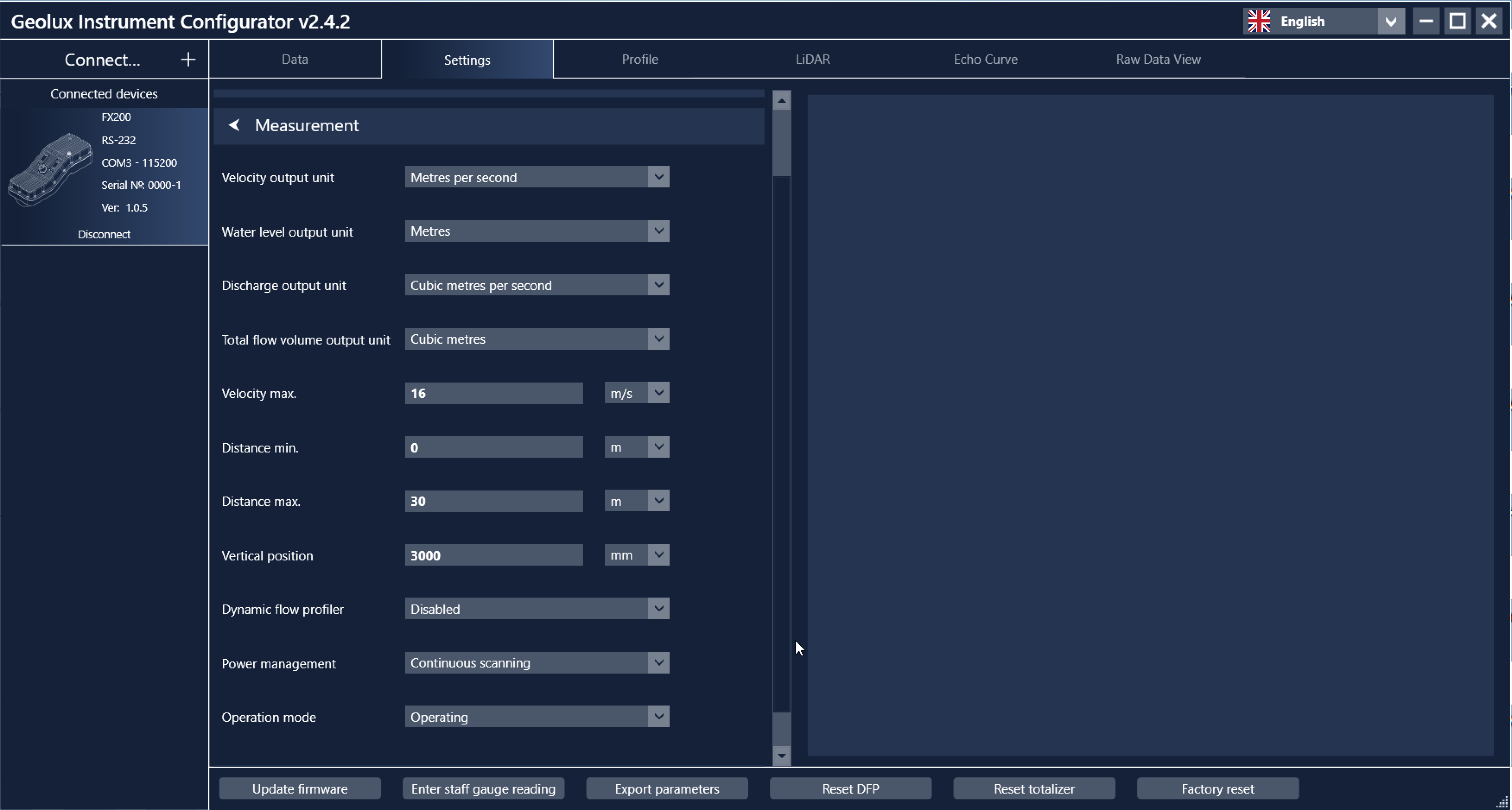

Measurement settings.#

../../_images/app-lidar.png

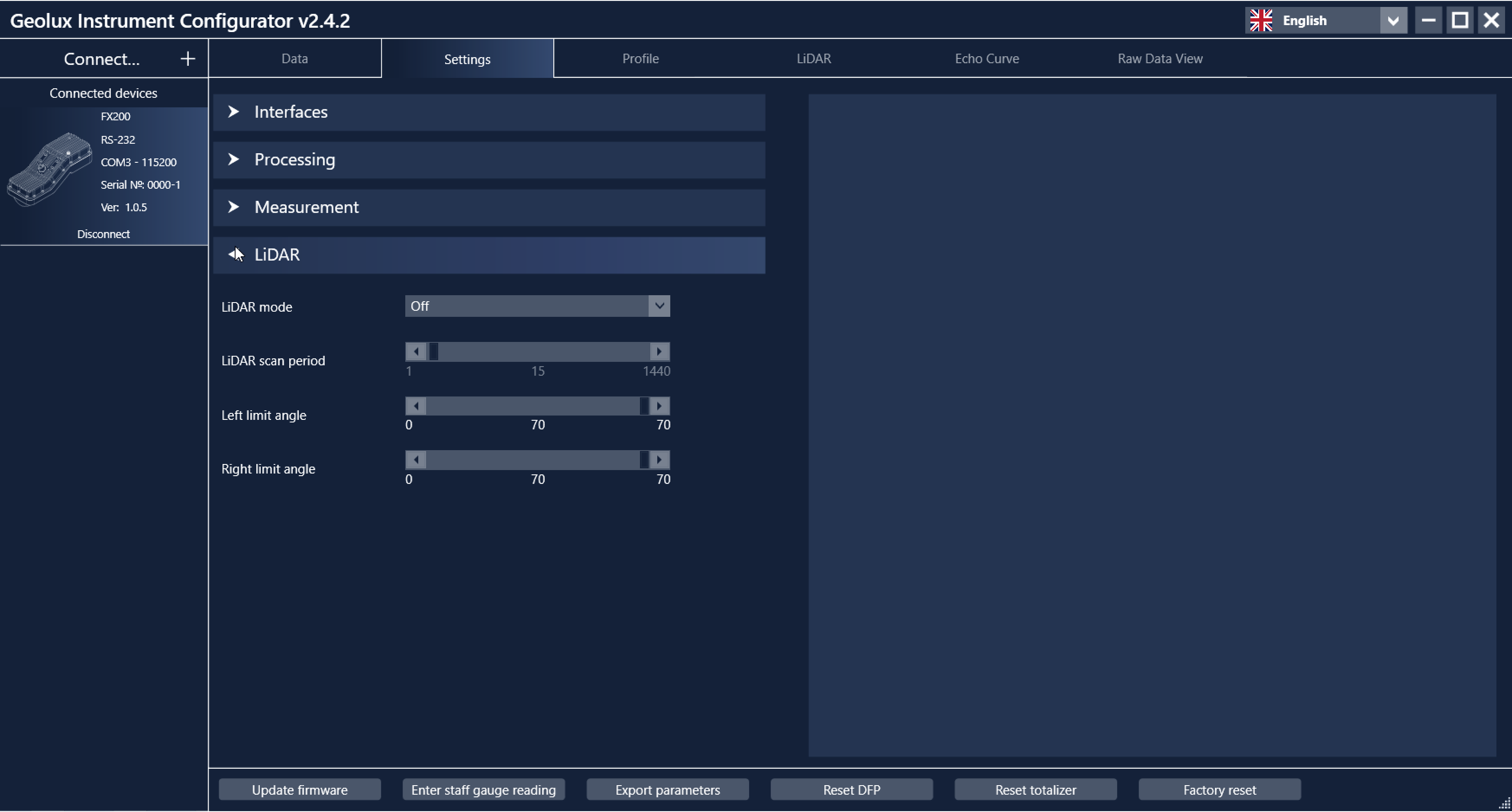

LiDAR settings.#

../../_images/app-91.png

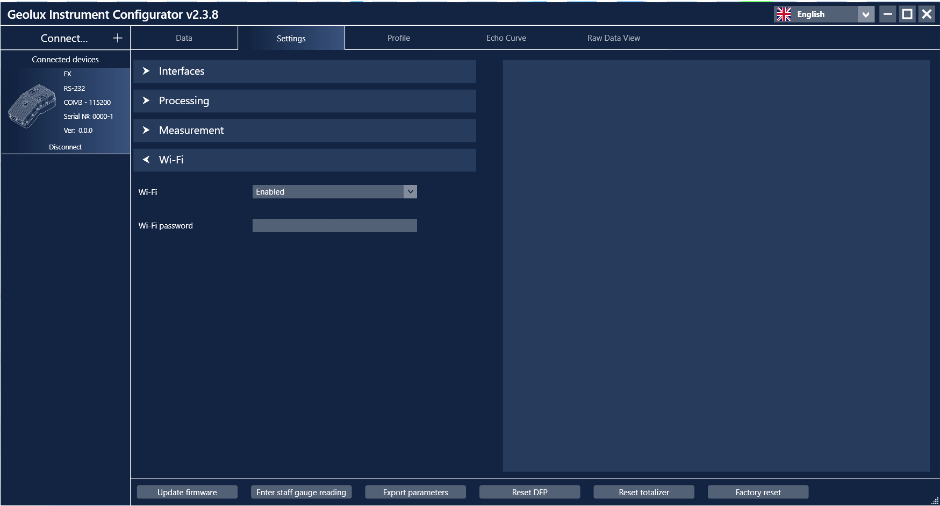

Wi-Fi settings.#

Additional functions available in the Settings tab include:

  • Update firmware – Updates the device firmware to a newer version.

  • Enter staff gauge reading – Changes radar height parameter based on the current reading of the staff gage at the monitoring site.

  • Export parameters – Saves all device parameters to a text file for review.

  • Reset DFP – Clears all accumulated DFP history data.

  • Reset totalizer – Resets the volume totalizer to zero.

  • Factory reset – Restores all parameters to their default values.
